Foundry Industry
SINO-FOUNDRY—professional refractory manufacturer
Foundry Industry
Metal transfer equipment

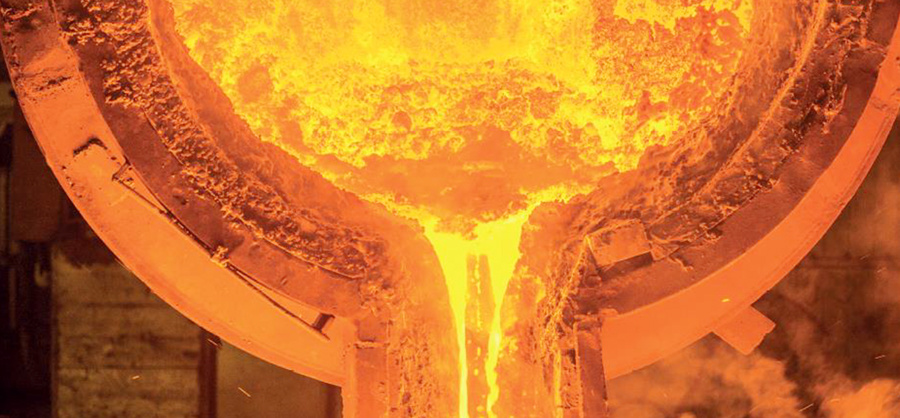

Iron/Steel ladle：
SFR can offer insulation material, thermal calculation, lining design of ladle, help to reduce heat loss during transportation, minimize temperature drop. SFR can offer refractory solution for Transfer crucible and ladle lids of iron & steel & aluminum industry. Increase casting quality and energy-efficiency.
◎ ULTRA-FLO® 85 is high alumina based castable designed for iron/steel ladle under various conditions, anti-slag, low tendency of crack. Good performance in 0.5T to 25T ladles. Other options like ULTRA-FLO® 61, ULTRA-FLO® 51, ULTRA-FLO® 49 etc, can be selected depends on each application.
◎ ALU-PAK® 67, ALU-SEAL® 68 or other plastic/plaster from SFR as repair material for ladles, can increase slag resistance and service life for ladle significantly.
◎ LADLE SEAL, MAG-SEAL® 813 and other coating material is suggested for daily maintenance.
◆ Mechanized construction, less physical exertion, more humane.
◆ Longer and safer service life, less accidents.
◆ A uniform structural design, no joints, without structural weaknesses.
◆ Can be repaired repeatedly, reducing the refractory consumption and the problems of waste lining disposal.
◆ Better lining design, lower heat conductivity and save energy.
◆ It can be used to make different linings according to each material’s property.
◆ It can be used to make precast shapes according to specific requirements.
◆ Short delivery times, reducing inventory and capital pressure.
Cleaning will not only waste a lot of labor and time, but also cause damage to the lining. Apply coating material can help to reduce de-slag frequency:
◆ Reduce the labor cost;
◆ Reduce mechanical wear and impact on the lining;
◆ Extend the service life.
| AREA | PRODUCT NAME | DESCRIIPTION | Al₂O₃ % |
SiO₂ % |
Cr₂O₃ % |
CaO % |
Bulk Density g/cm³ |
Max Temp ℃ |
| Work lining material |
ULTRA FLO 49 | Aluminum silicon based castable |
46.7 | 47.5 | 1.5 | 2.22 | 1650 | |
| ULTRA FLO 61 | Aluminum silicon based castable |
63.0 | 30.0 | 1.5 | 2.62 | 1700 | ||
| ULTRA FLOS 65 | Aluminum silicon based castable |
64.2 | 30 | 1.4 | 2.54 | 1650 | ||
| ULTRA FLO 869 | Aluminum silicon based castable |
69.1 | 27.5 | 2.61 | 1750 | |||
| ULTRA FLOS 872 | Mullite based castable | 70.1 | 21.9 | 2.2 | 2.6 | 1750 | ||
| ULTRA FLOS 85 | Alumina based castable | 84 | 12 | 2 | 2.85 | 1750 | ||
| ULTRA FLOS 885 | Alumina based castable | 84.3 | 11.5 | 2 | 2.87 | 1750 | ||
|
ULTRA FLOS 827 |
Corundum based castable |
93.0 | 1.0 | 5.5（MgO） | 2.98 | 1815 | ||
| Lining repair coating |
ALU-PAK® 55 | Aluminum silicon based plastic |
62.0 | 32.0 | 2.55 | 1680 | ||
| ALU-PAK® 67 | Aluminum silicon based plastic |
68.0 | 26.0 | 2.65 | 1700 | |||
| ALU-SEAL 68 | Aluminum silicon based plastic |
68.0 | 26.0 | 2.65 | 1650 | |||
| ALU-PAK® 73CR | Alumina chromium- containing plastic material |
75.0 | 9.0 | 4.0 | 2.85 | 1750 | ||
| ALU-PAK® 78CR | Chromium oxide- containing corundum- based plastic material |
75.0 | 12.0 | 8.0 | 2.65 | 1800 | ||
| MAG-SEAL 813 | Magnesium oxide based anti-slag coating |
25 | 56（MgO） | 2.0 | 1650 | |||
| LADLE SEAL | Carbon silicon based coating |
11.0 | 65.0 | 20（C） | 1.80 | 1650 |
